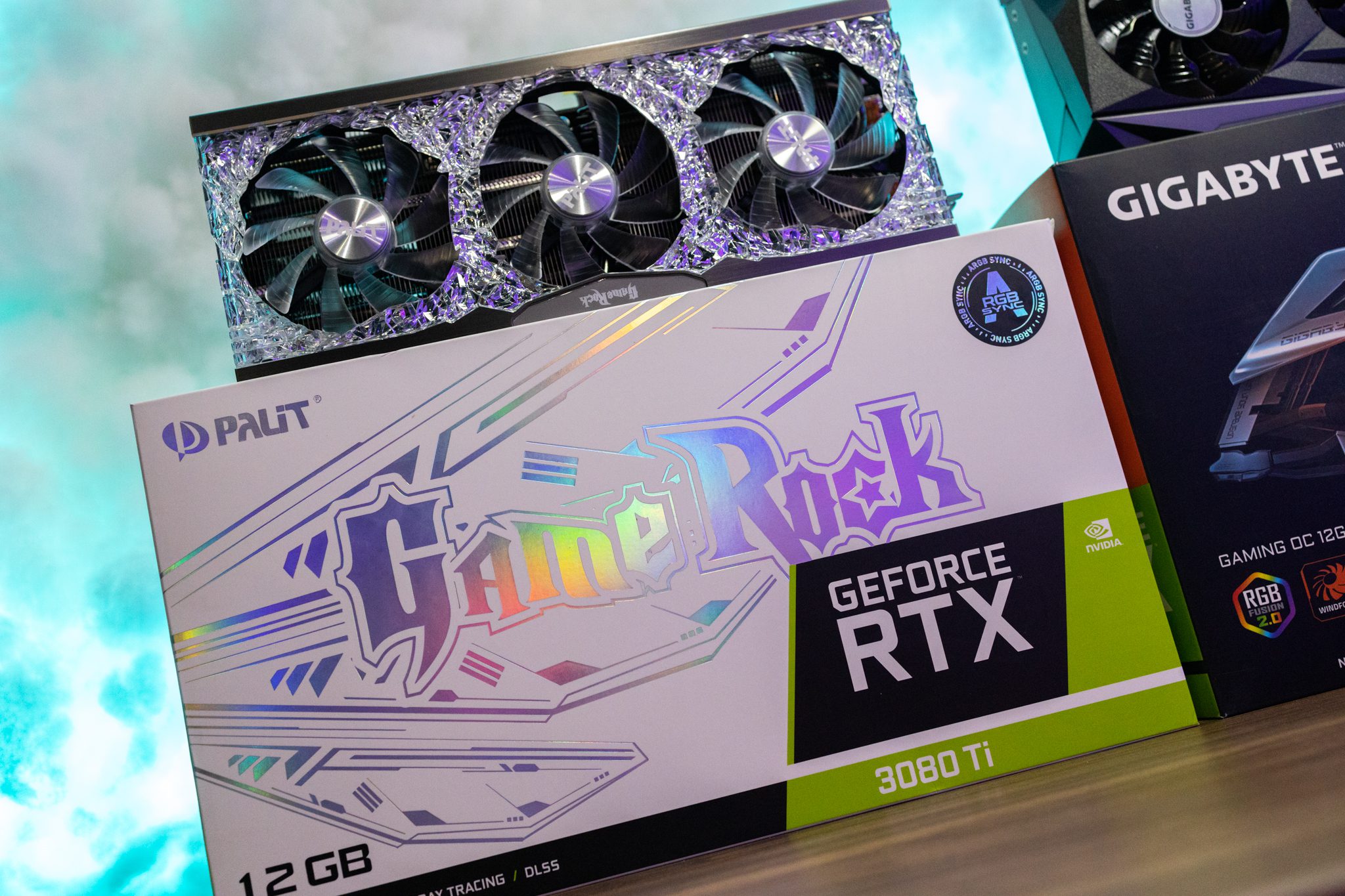

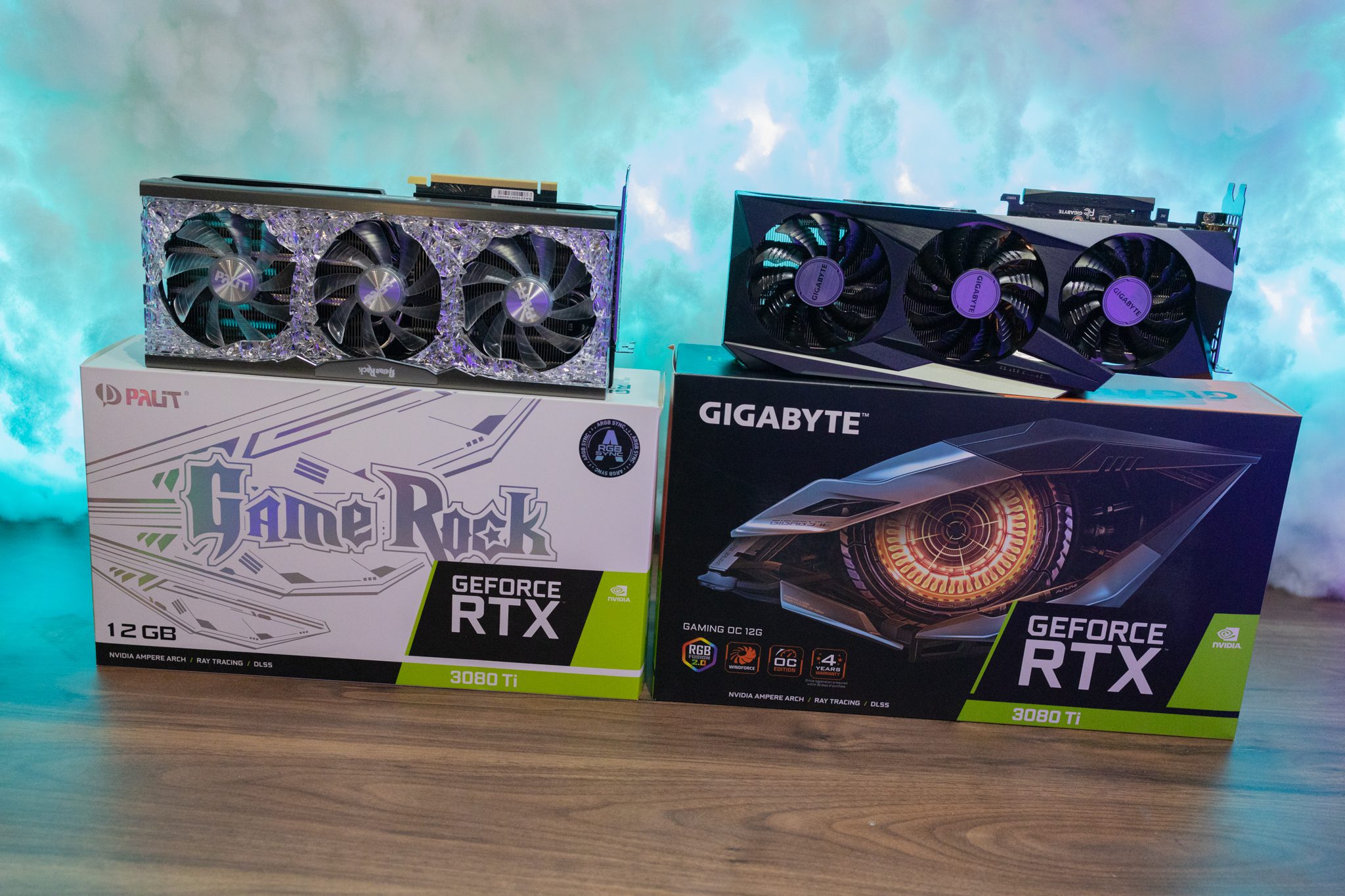

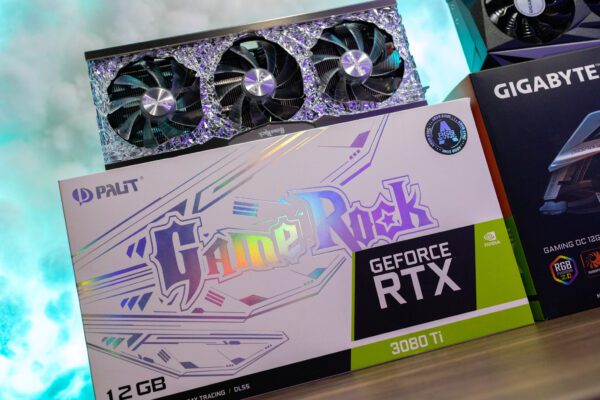

Palit GeForce RTX 3080 Ti 12GB GameRock OC Ampere Graphics Card
General
|
Graphics card |
PCI Express 4.0 |
NVIDIA GeForce RTX 3080 Ti |
1365 MHz |
1725 MHz |
10240 |
Yes |
7680 x 4320 |
4 |
3 x DisplayPort ¦ HDMI |
Vulkan, OpenGL 4.6, DirectX 12 Ultimate |
Dual Bios, Nvidia CUDA technology, Nvidia PhysX-Ready, NVIDIA Adaptive Vertical Sync, NVIDIA GPU Boost, Dual ball Bearing Fan, Nvidia GeForce ShadowPlay, NVIDIA G-Sync ready, NVIDIA GameStream, Nvidia Temporal Anti-Aliasing Technology (TXAA), NVIDIA Dynamic Super Resolution technology, DrMOS, Nvidia SHIELD ready, Multi-Frame Anti-Aliasing (MFAA), simultaneous multi-projection, NVIDIA Ansel, Real-Time Ray Tracing, NVIDIA Highlights, 2.7-slot Fan Cooler, 0-dB TECH, Nvidia Adaptive Shading, Nvidia DLSS, NVIDIA Ampere GPU technology, ARGB Lighting, 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores, TurboFan Blade 3.0 cooler, HDCP |
Memory
|
12 GB |
GDDR6X SDRAM |
19 Gbps |
384-bit |
912 GBps |
System Requirements
|
850 W |
3 x 8 pin PCI Express power connector |
Miscellaneous
|
400 Watt |
Graphics card holder |
ThunderMaster |
DisplayPort 1.4a |
6 cm |
30.4 cm |
13.6 cm |

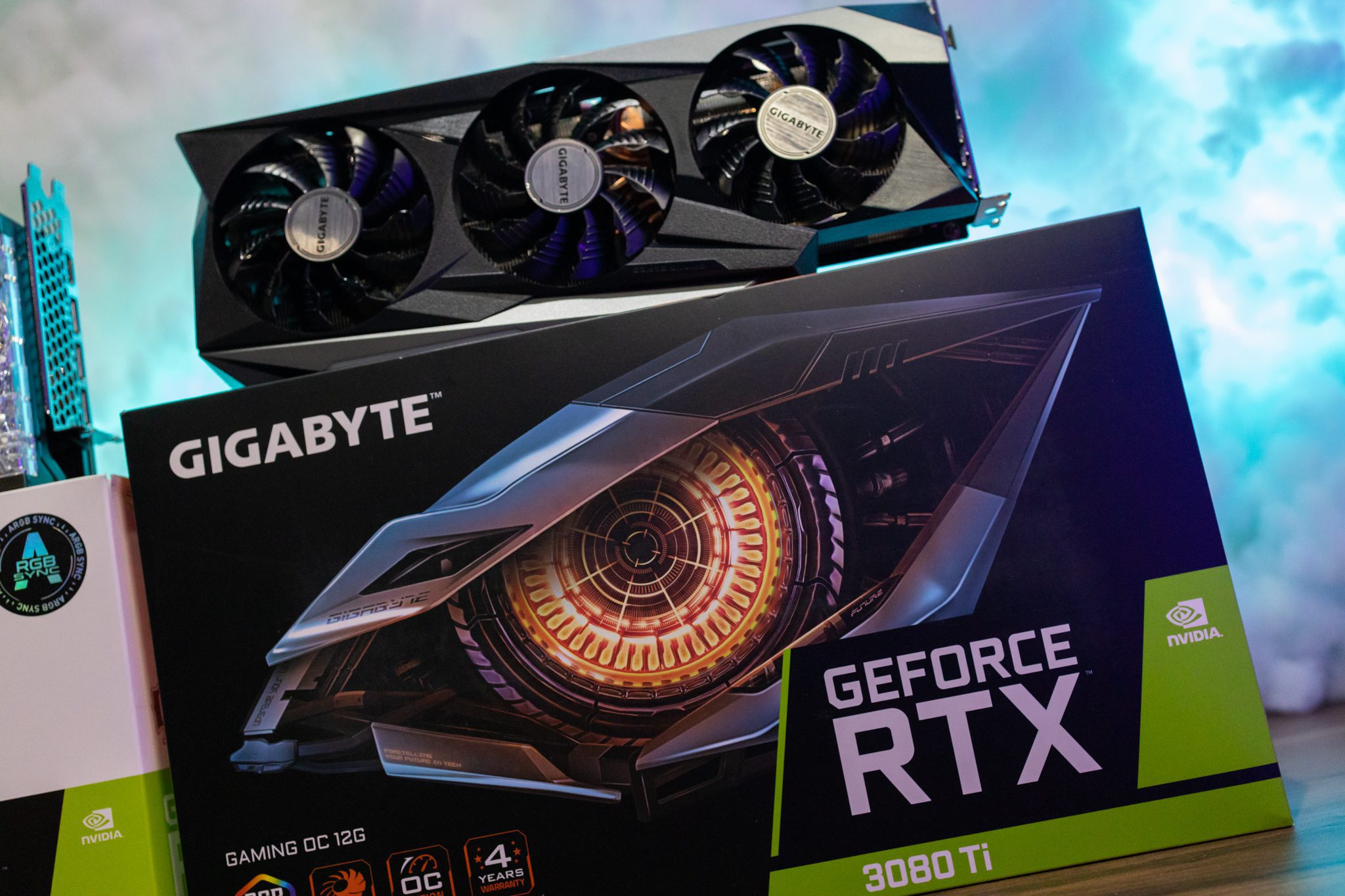

Gigabyte Nvidia GeForce RTX 3080 Ti GAMING OC 12GB GDDR6X PCI-Express Graphics Card
STEP INTO THE FUTURE OF GRAPHICS
Prepare yourself for an unforgettable gaming experience with the Gigabyte RTX 3080 Ti Gaming OC GPU, powered by the all-new NVIDIA GeForce Ampere architecture boasting 2nd Generation RT cores and 3rd Generation Tensor Cores to bring you the biggest graphical performance leap of the modern era. The RTX 3080 Ti Gaming OC features the renowned WindForce 3x cooling system to keep all that power in check with its alternate spinning unique bladed fans to give you whisper quiet unprecedented high efficiency heat dissipation. A protective metal backplate not only enhances the aesthetics of the card but also enhances the structure to provide full protective coverage and with support for RGB Fusion 2.0 you have access to 16.7M customisable colour options and numerous lighting effects, you can choose from or synchronise with other AORUS devices. Welcome to the future of gaming with GeForce 3080 Ti.
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 2 x 90mm and 1 x 80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate direct touch GPU and 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. The Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure. The adjacent fans turn in the opposite direction so that the airflow direction between the two fans is the same. The 3D Active Fan offers semi-passive cooling, and the fans remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customisable color options and numerous lighting effects, you can choose lighting effects or synchronise with other AORUS devices.
PROTECTIVE METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and a longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
