The ROG Strix GeForce RTX™ 4080 brings a whole new meaning to going with the flow. Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
The unleashed reign of the NVIDIA Ada Lovelace architecture is here.

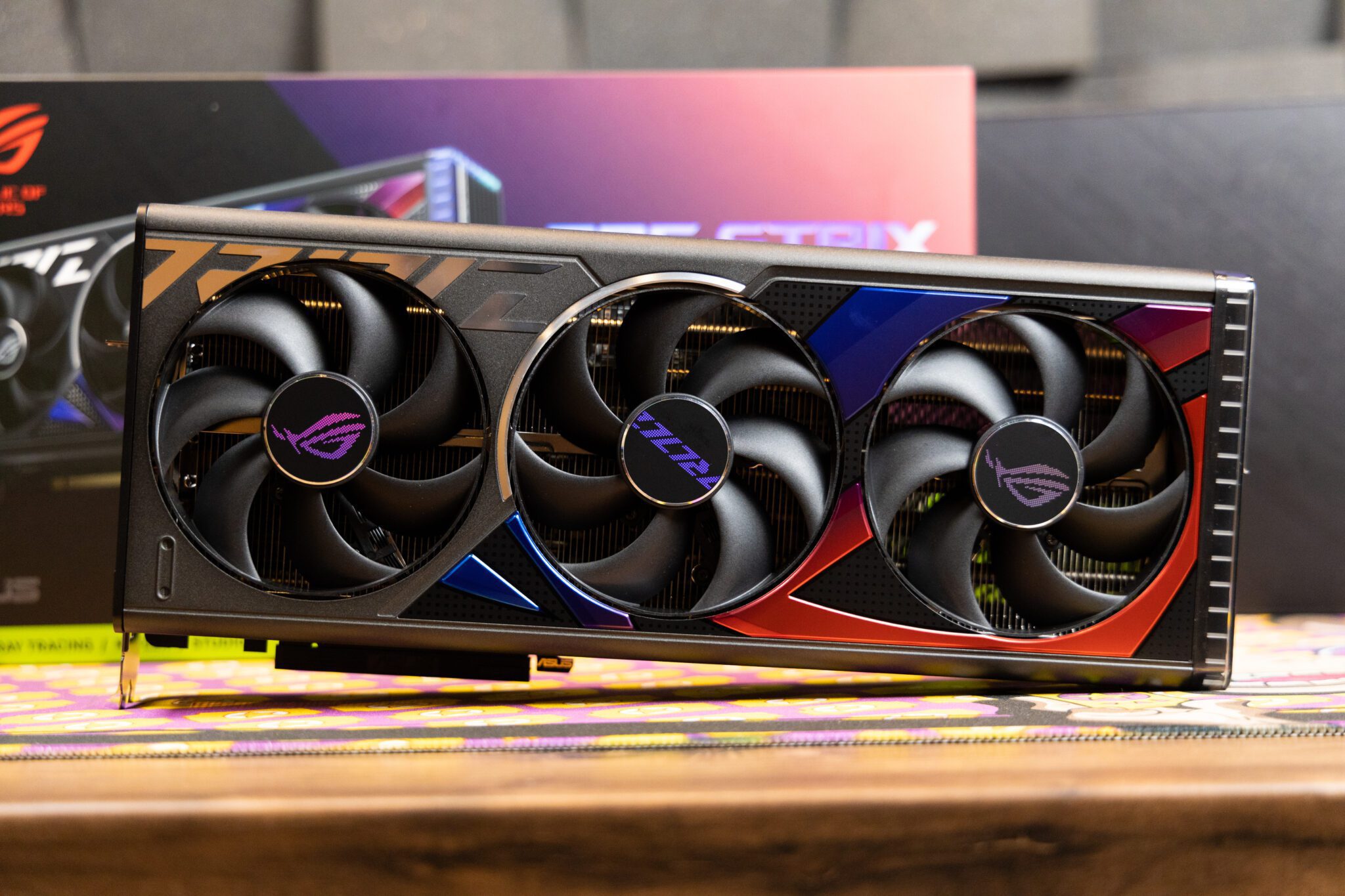

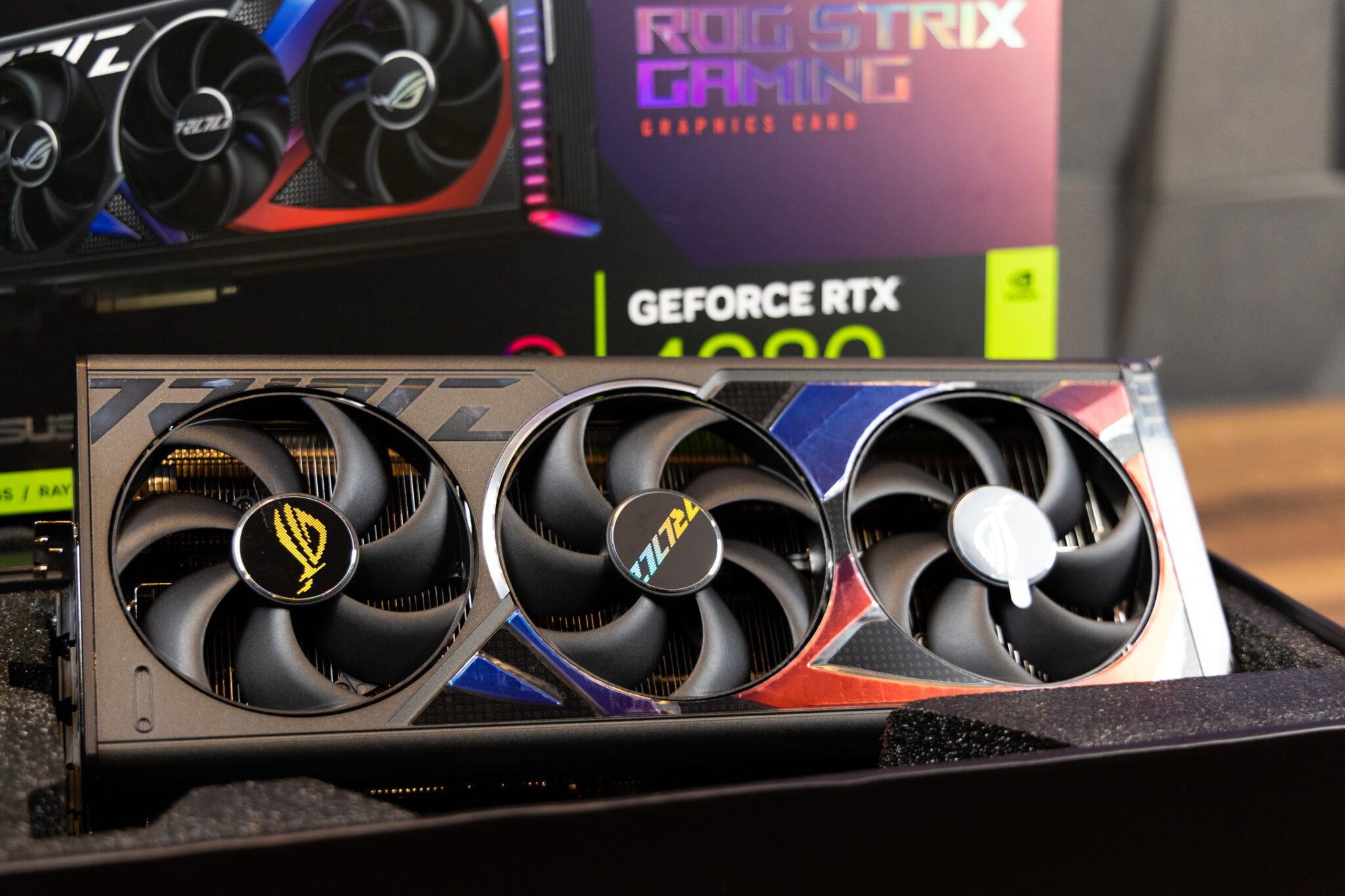

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.
The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4080 GPU so that it can be efficiently whisked away by the three Axial-tech fans.
A vapor chamber featuring milled pathways lets the heatpipes sink in without being pressed flat, allowing heat to be carried more efficiently to the fin stack. In comparison to conventional vapor chamber and heatpipe combos, this potent pairing reduces GPU temperature by up to 5 Celsius when subjected to a 500W thermal load.
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.
Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.

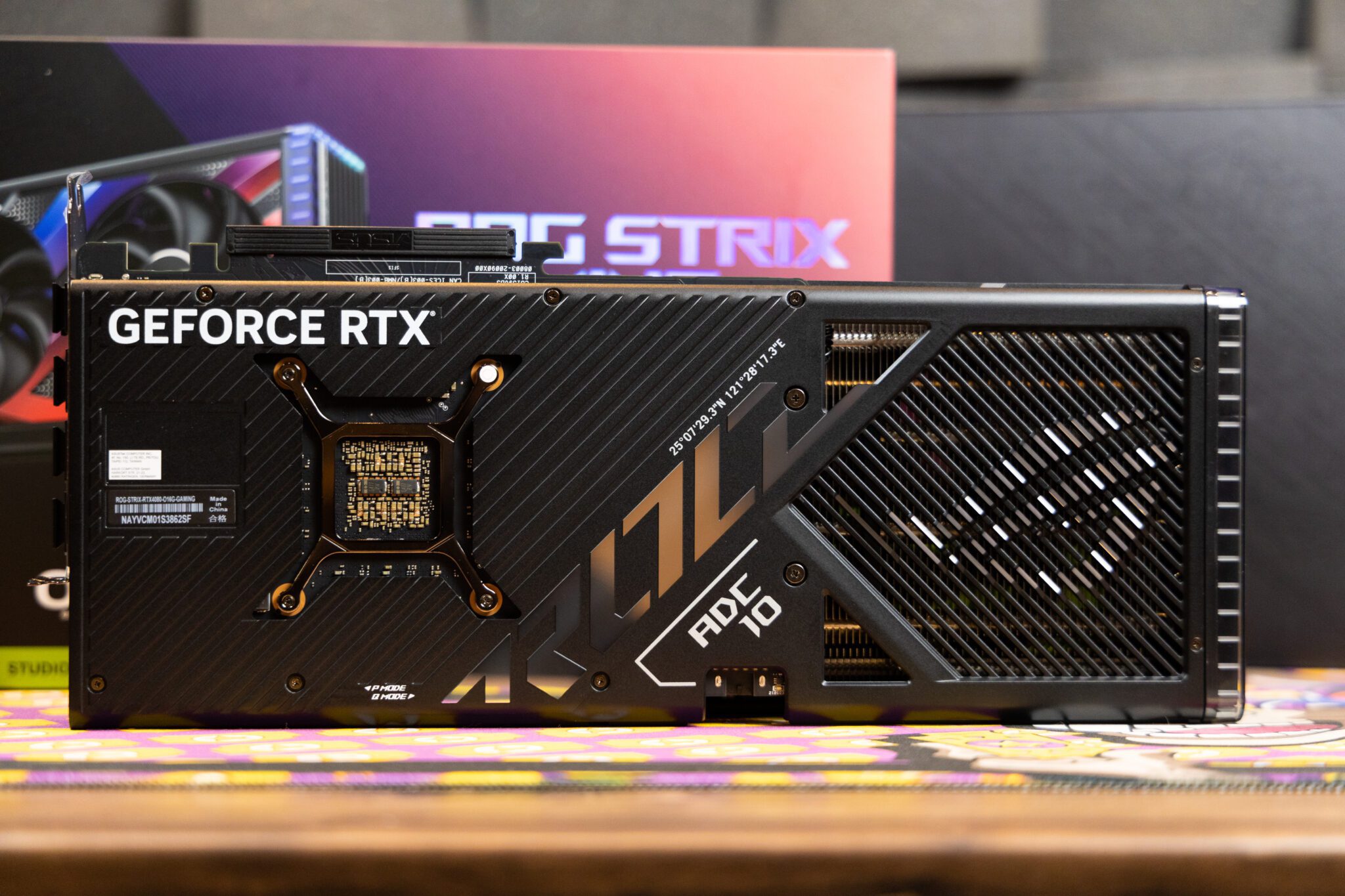

A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.
It all comes together to effortlessly drive GeForce RTX 4080 performance to the max.
Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.
A GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.
Know if your PSU is worthy. ROG Strix GeForce RTX 4080 graphics cards feature a high-speed circuit that constantly monitors input power from the PSU and utilizes conveniently placed LEDs to indicate voltage regulation issues and cable connection problems.
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Symphony of Light
Aura-compatible ARGB lighting elements on the shroud and rightmost perimeter of the card provide endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.
Graphics Card Holder
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 2X AI performance
3rd Generation RT Cores: Up to 2X ray tracing performance
Axial-tech fans scaled up for 23% more airflow
New patented vapor chamber with milled heatspreader for lower GPU temps
3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
|Chipset Model Name||GeForce RTX|
|Chipset Model Number|
|Chipset Additional Information||ROG Strix OC Edition|
|Memory Size||16384 MB|
|Memory Width||256 bit|
|Video Card Bus Type||PCI Express|
|Video Card Bus Version||4.0 x16|
|HDMI Port||2 x HDMI 2.1a|
|DisplayPort||3 x DisplayPort 1.4a|
|Multiple Monitor Support (Max)||Yes (4)|
|Maximum Resolution||7680 x 4320 pixels|
|System Requirements||1 x PCI Express 4.0 x16 slot|
Recommended 750W or greater PSU with 1 x 16-pin or 4 x 8-pin PCIe connectors
|Power Connector||1 x 16-pin PCIe|
|Recomended Power Supply||750 W|
|Form Factor||Graphics Card|
|In The Box||Graphics Card|
ROG Graphics Card Holder
ROG Velcro Hook & Loop
Thank You Card
|Width||70.1 mm (3.5 slot)|
|Interface Type||PCI Express 4.0 x16|
|Direct X Support||Direct X 12|
|Cooler Type||Dynamic Fan|
|NVIDIA GeForce||RTX 4080|
|PCI-E Pin Type||12+4-Pin|
|Cooling Technology||Dynamic Fan|
|VR Ready PC|
|GPU Length||358 mm|
|GPU Power (TDP)||W|
|Graphics card count||1|
|PCIe Physical Slot required||16|
|Graphics Chipset||GeForce RTX 4080|
|Lite Hash Rate||Yes|
